⚡ Parabolic Concentrator Technology

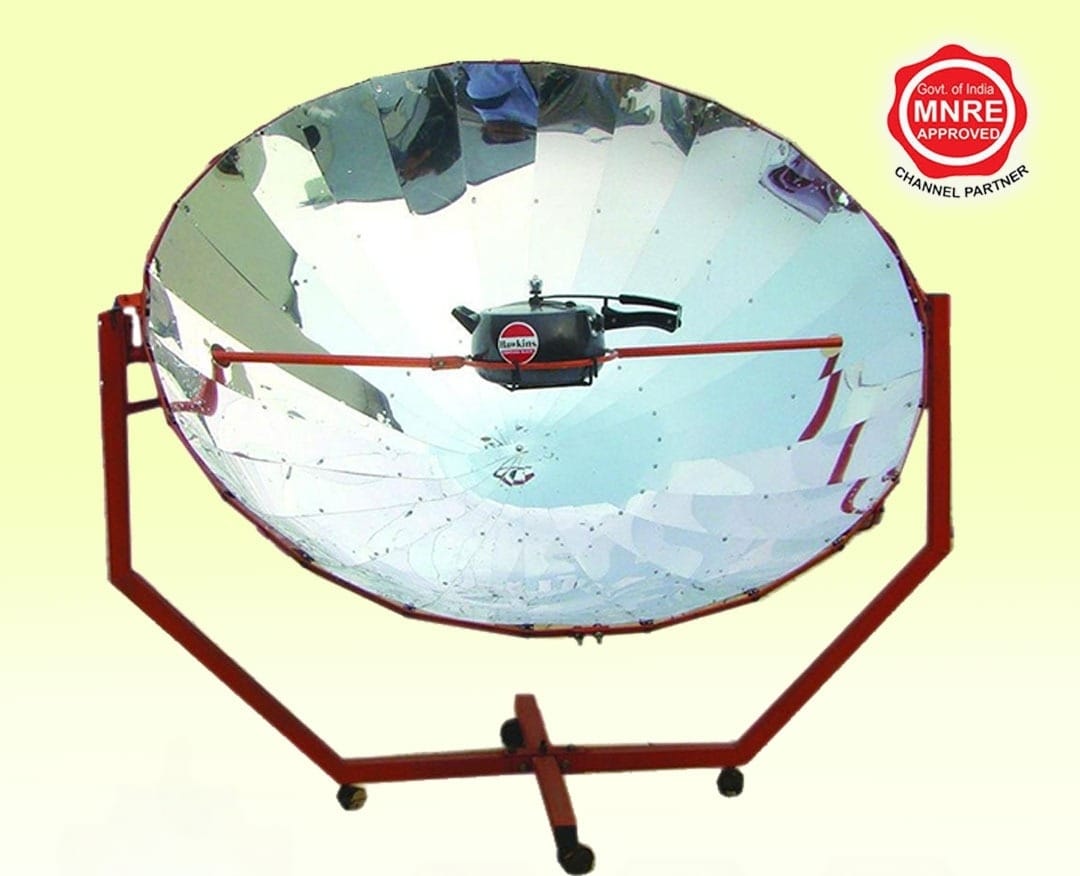

The Solar Parabolic Cooker harnesses the power of a precisely curved parabolic reflector to concentrate sunlight onto a small focal point, instantly generating intense heat (up to 350°C). This concentrated energy is transferred directly to a cooking vessel, enabling boiling, frying, roasting, and steaming without any fuel. The system features a simple manual tracking mechanism to follow the sun, ensuring peak performance throughout the day. Ideal for clean, sustainable cooking in both rural and urban settings.
Core Capabilities
Everything you need for clean energy performance — engineered and field-tested.
Cooking Performance
- Boiling, frying, steaming, roasting
- Rice: 20–25 min (2‑4 kg batch)
- Dal: 40–45 min (3‑5 liters)
- Vegetables: 20–25 min (2‑3 kg)
System Components
- High‑reflectivity parabolic dish
- Galvanized steel support frame
- Manual single‑axis tracking
- Adjustable cooking vessel stand
- Safety wind lock mechanism
Safety Features
- Sturdy ground‑mounted design
- Heat‑resistant receiver & handles
- Safe manual tracking without glare
- No open flame – zero fire risk
Key Benefits
- Zero fuel cost – complete LPG elimination
- 15‑20 year system lifespan
- 1–2 year payback period
- Minimal maintenance cleaning
Technical Details
| Parameter | Specification |
|---|---|

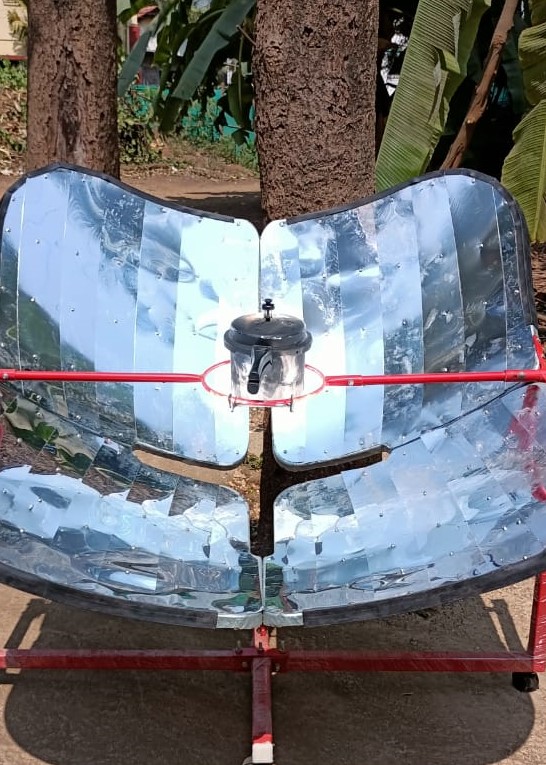

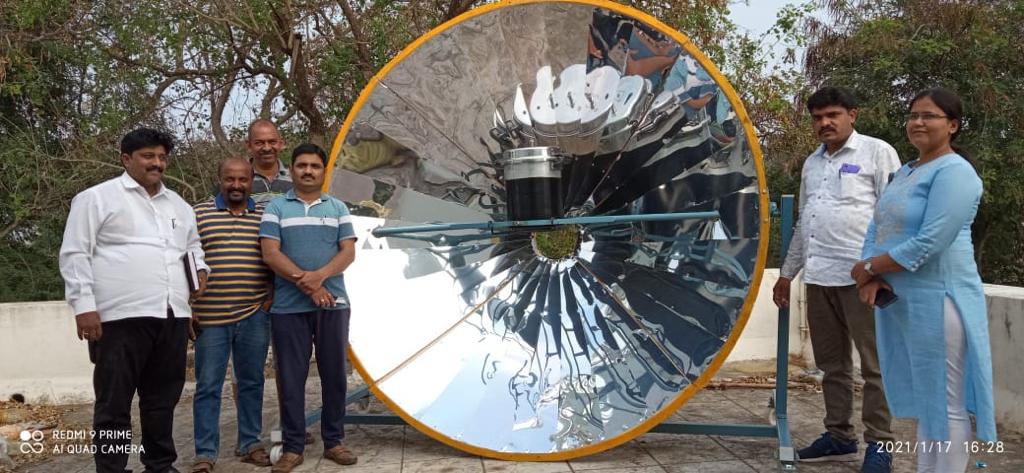

| Reflector Area | 1.5 m² & 4 m² (Available Options) |
| Type | Parabolic Dish Concentrator |
| Reflector Material | High reflectivity aluminum / mirror finish |
| Reflectivity | ≥ 90% |
| Structure Material | Mild Steel with anti‑corrosion coating |
| Tracking System | Manual (Single Axis) |
| Concentration Ratio | 60:1 to 120:1 |
| Focal Length | ~0.8 to 1.5 meters |
| Operating Temperature | 150°C to 350°C |
| Cooking Capacity | 5-40 persons (based on model) |
| Mounting Type | Ground mounted |
| Wind Resistance | Up to 120 km/h (with locking mechanism) |
Solar Performance
| Parameter | Value |
|---|---|
| Thermal Output | 1 kW – 3.5 kW (based on model) |
| Solar Efficiency | 50% – 65% |
| Daily Cooking Hours | 5–7 hours (clear sky) |
| Fuel Savings | Significant reduction in LPG usage |
Applications & Impact
Ashrams
Anganwadi
Small PG
Small Hotels / Dhaba's
Sterilization (Hospital PHC)
Small Schools
